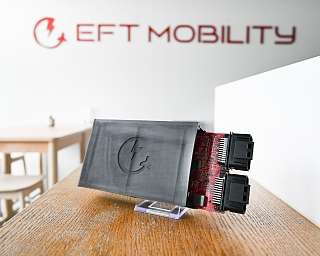

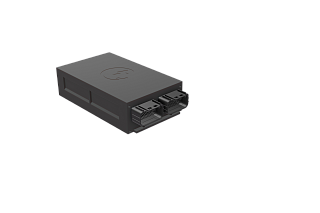

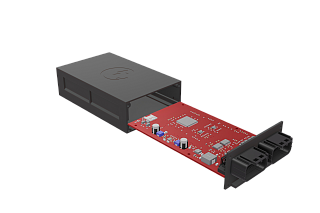

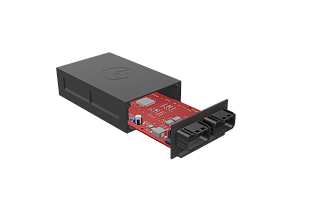

EFT-VCU-1x
The EFT-VCU-1x (Vehicle Control Unit) is designed as a central control unit for any (hybrid) electric powertrain. The main function is to supervise and control all the subcomponents of a powertrain (ICE/Turbine, Power Electronics, Inverter and Batteries).
Its modular power and control interface allows the EFT-VCU-1x to be integrated with ease into any (hybrid) electric powertrain system.
This platform serves as the central brain in several of our customer applications.
EFT-VCU-1x
1
Power Management
Power Management of ICE/Turbine, System Voltage Regulation, Charge Control of Battery
2
Smart Monitoring
Monitoring and recording of all relevant parameters and alert processing
3
Modularity
Simplified interfaces for modularity and ease of integration
Key Parameters
Sensor InPut/Output:
- 9 Temperature Thermocouple Inputs
- Voltage Sensors
- Current Sensors
- Generic Analog I/O
- Generic Digital I/O
Communication Interfaces:
- CAN2.0b
- RS-232
- UART
- I2C
- SPI
- PWM Input/Output
- ADCs
- DACs
DATA STORAGE:
- SD Card with high rate data logging
Safety Functions:
- Input filtering
- Reverse polarity protection
Power Distribution:
- Protected 12V Rail with 3 individual Outputs
- Protected 5V Rail with 4 individual Outputs
